Plywood Calibrating Sanding Polishing Machine

I am Eva from China. Specialist in plywood production management.
We offer a wide range of solutions :supplier machine/factory design/improve processes/training workers .
And optimize the use of resources with technology adapted to your industry.
We do every efforts to support your rapid development and growth.

Yuequn Sanding machine
1.Working width:40-1300mm
2.Working length:500mm(roller diameter different length different)
3.Thickness:3-100mm
4.Sanding tolerance ±0.05mm
5.One side sander, can be use for calibration, one time one side

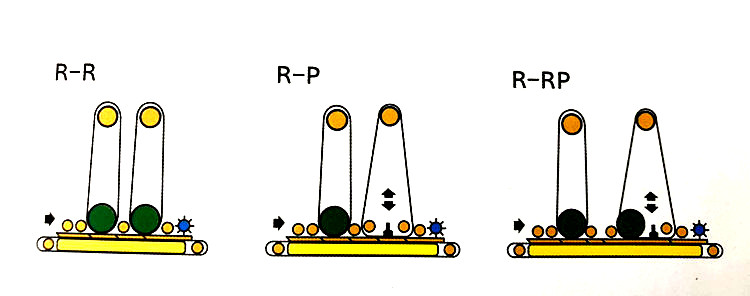

1300R-R two sanding heads work for calibration sanding .
1300R-RP two sanding heads with one polish pad. Calibration and Polishing.
Thickness more than 12mm, 490pcs/h (2440*1220*12mm)
Thickness within 12mm,1400pcs/h
6.Double sides sander MM5613 with two heads ,one time two sides sanding.
Thickness more than 12mm, 240pcs/h (2440*1220*12mm)
Thickness within 12mm,700pcs/h
Availability:
Quantity:
  • YQSANDER

  • YUEQUN

  • 84659300

Product Description
Products Description
   Example 1300mm Technical Specifications
Model
1300R- RP
1300R-R
1300R-P
Operation width
1300mm
1300mm
1300mm
Min. operation length
480mm
480mm
480mm
Material thickness
2.5 - 120 mm
2.5 - 120 mm
2.5 - 120 mm
Sand - belt speed
20m/s     18m/s
20m/s     18m/s
20m/s     18m/s
Conveyor speed
6-30 m/min
6-30 m/min
6-30 m/min
General motor power
63.74 kW
56.74 kW
49.74 kW
Sand- belt size
1330 * 2200 mm
1330 * 2200 mm
1330 * 2200 mm
Working pressure
0.6 MPa
0.6 MPa
0.6 MPa
Dust - absorption capacity
9000 m³/h
9000 m³/h
9000 m³/h
Machine size
2600*2100*2150mm
2600*2100*2150mm
2600*2100*2150 mm
Weight
3600kg
3500kg
3300kg
Remark :Available Customize 630mm 1000mm 1600 mm etc width single side and double side sanding machine
Product Details
1) Rough sanding can be processed with 2 sand ,fine sanding can be processed with sanding        pad
2) Big removing quantity as well as good smoothness
3) Advanced imported parts are used , multi - combination between electric and mechanical ,        high reliable performance
4) Soft sanding air bag of RP has the floating function ,which can avoid the wor out and bring a       beter sanding effect
5) This machine is a necessity for artificial wooden board ,multi -layer board veneer etc .
Company Profile
Shandong Yuequn Machinery established in 1994 , it's the biggest and professional plywood production machinery Manufacturer in Linyi city China .all the machine for exporting , over 50 countries .The complete complete line include : log debarker - veneer peeling machine - veneer dryer machine - veneer composer machine - glue spreader - cold press machine - hot press machine - plywood edge cutting saw - sanding machine and so on .
Our Certifications
Why Choose Us

Pre-sale service

1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory

Service during the sales

1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator

After sales service

1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
Packing&Delivery
Hot Product

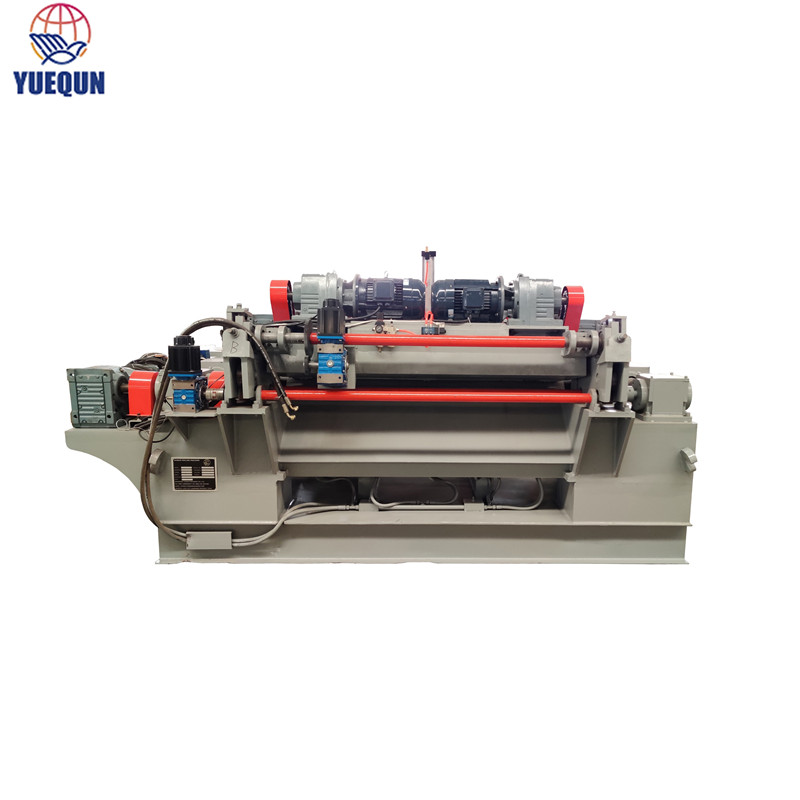

veneer peeling machine
